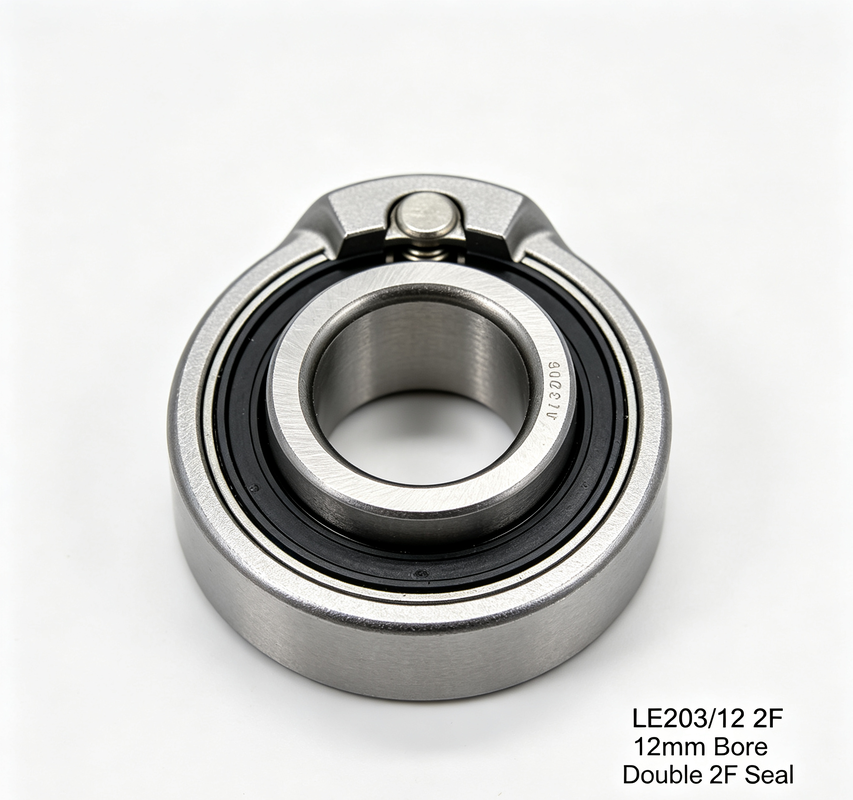

LE203/12 2F Eccentric Lock Collar Outer Spherical Insert Ball Bearing

LE203/12 2F Eccentric Lock Collar Outer Spherical Insert Ball Bearing

Nama merek:	GQZ
Nomor Model:	LE 203/12 2F
Jumlah Pesanan Minimum:	100. buah
harga:	Bisa dinegosiasikan
Waktu Pengiriman:	5 hari kerja
Ketentuan Pembayaran:	T/T, Western Union, Paypal, MoneyGram

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO9001/ISO14001/GJB9001

Kecepatan Gemuk:

37000 RPM

Dimensi batin:

20mm

Mempercepat:

Kemampuan Kecepatan Tinggi

Berat Bantalan:

0,100kg

Jenis bantalan:

Bantalan bola alur yang dalam

Industri:

Bantalan Peredam Industri

Melayani:

Layanan OEM yang Disesuaikan

Fitur:

Presisi Tinggi Dan Kapasitas Beban

Gaji:

Nilon/Baja

OEM:

Menerima

Bahan:

Baja Krom (GCr15)

Tipe Segel:

BUKA ZZ 2RS

Tipe Segel:

Buka, segel ganda, perisai ganda

Penggunaan:

Mobil

Pelumasan:

Pra-dilumasi dengan minyak atau minyak

Kemasan rincian:

Kotak Karton Standar

Menyediakan kemampuan:

1000.pcs / Bulan

Deskripsi produk

1. Product Overview

The LE203/12 2F eccentric locking outer spherical bearing is designed for mini light conveyor equipment, offering quick shaft installation and high temperature oil resistant sealing.

It is widely used in small textile, packaging and micro agricultural machinery where dust, light vibration and compact installation space are required.

👉 Get a quote within 24 hours for your project

2. Technical Specifications

Model: LE203/12 2F

Inner Diameter (ID): 12 mm

Outer Diameter (OD): 40 mm

Width: 27.4 mm

Structure: Eccentric locking collar, double 2F fluorine rubber seal

Material: Bearing steel

Gear Type (if any): None

👉 Full technical data and drawings available upon request

3. Key Advantages

High load capacity for light-duty mini equipment
2F fluorine seal, oil resistant, high temperature & dustproof
Eccentric collar design, no keyway needed for shaft mounting
Self-aligning outer spherical surface to compensate shaft misalignment
Custom stainless version LE203/12 2F.SH available for wet corrosive environment

👉 Helps reduce maintenance cost and extend bearing service life

4. Applications

This bearing is widely used in:

Mini conveyor roller systems
Small textile weaving machines
Micro packaging production lines
Light small agricultural equipment

👉 Ideal for customers looking for compact reliable small-size bearing solutions

5. Why Choose GQZ Bearing

25+ years experience in industrial bearing manufacturing
Exported to 50+ countries worldwide
Rich experience in OEM & custom non-standard bore bearings
Strict quality inspection before shipment
Fast response within 24 hours
Stable supply for long-term cooperation

👉 We focus on quality, reliability, and long-term partnership

6. Quality Assurance

Raw material inspection
Precision machining process
Heat treatment control
Clearance & rotation testing
Final inspection before delivery

👉 Ensuring consistent performance for every bearing

7. Get a Quote Now

Looking for a reliable eccentric spherical bearing supplier?

👉 Send your inquiry to get:

Fast quotation within 24 hours
Technical support from engineers
Custom stainless bearing solution suggestions
Competitive factory price

👉 Click “Send Inquiry” or contact us now

8. FAQ

Q1: Is LE203/12 2F a non-standard bore bearing?

Yes, standard LE203 bore is 17mm, this model is customized 12mm inner diameter for small light shafts.

Q2: What’s the difference between 2F and 2S seal?

2F is fluorine rubber seal, better oil & high temperature resistance than ordinary rubber 2S seal.

Q3: Can you supply stainless steel version of this bearing?

Yes, model LE203/12 2F.SH is full stainless type for food, damp and corrosive working conditions.
