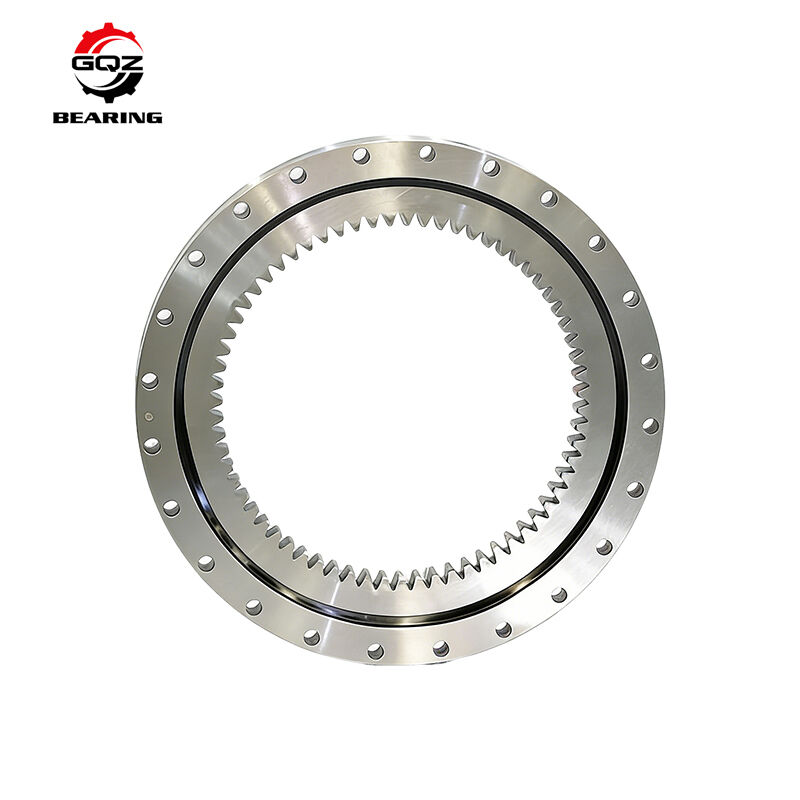

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts

Nama merek:	GQZ
Nomor Model:	XSI140414N
Jumlah Pesanan Minimum:	5 buah
harga:	$359-$365
Waktu Pengiriman:	3 hari kerja setelah menerima pembayaran Anda
Ketentuan Pembayaran:	T/T atau Western Union atau PayPal

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO9001/ISO14001/GJB9001

Bahan:

Baja Bantalan GCr15

Nama Produk:

Bantalan slewing presisi tinggi

tanda pengenal (mm):

OD (mm):

Lebar (mm):

Peringkat presisi:

Struktur:

Berbentuk silinder

Jaminan:

12 bulan

Kemasan rincian:

Dikemas dalam karton pertama, dan kemudian diperkuat dengan kasing kayu untuk pengepakan luar

Menyediakan kemampuan:

3.000 buah per bulan

Deskripsi produk

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts

The XSI140414N Slew Ring Bearing is a compact, high precision cross roller bearing designed for CNC machine parts, rotary tables, robotics, and industrial automation systems. With dimensions of 325x484x56mm, this slewing bearing provides smooth rotation, high rigidity, and efficient load handling.

Built with a cross cylindrical roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for precision positioning systems, turntable bearings, and CNC machinery applications.

This compact cross roller slewing bearing offers stable performance, space-saving design, and long service life, widely used in automation equipment, CNC systems, robotics, and industrial machinery.

Key Features

Compact Slew Ring Design: Ideal for space-limited installations.
Cross Cylindrical Roller Structure: Ensures high precision and smooth rotation.
Multi-Directional Load Capacity: Supports radial, axial, and moment loads.
CNC Application Optimized: Suitable for precision machining systems.
High Rigidity: Maintains stability under load conditions.
Durable Construction: Heat-treated bearing steel for long service life.

Technical Specifications

Parameter	Specification
Model	XSI140414N
Inner Diameter (ID)	325 mm
Outer Diameter (OD)	484 mm
Width (H)	56 mm
Type	Slewing Ring Bearing
Structure	Crossed Cylindrical Rollers
Material	Bearing Steel
Accuracy Class	P5 / P4 optional
Preload	Custom
Application	CNC Machine Parts, Robotics, Automation Equipment

Applications

CNC Machine Parts – High precision machining and positioning.
Rotary Tables – Smooth and accurate rotation systems.
Robotics – Stable motion for robotic joints and platforms.
Industrial Automation – Reliable motion control solutions.

Product Series Specifications

INA	Weight (Kg)	Da	di	Di	da	La	Li	ni/na	A	B	C	D	Preload	do	m	z
XSI140414N	31	484	325	415	411	460	375	24	0.04	0.04	0.06	0.06	0.01-0.03	495	5	99
XSI140544N	43	614	444	545	541	590	505	32	0.04	0.04	0.07	0.07	0.01-0.03	630	6	105
XSI140644N	50	714	546	645	641	690	605	36	0.05	0.05	0.08	0.08	0.01-0.04	732	6	122
XSI140744N	58	814	648	745	741	790	705	40	0.05	0.05	0.09	0.08	0.01-0.04	828	6	138
XSI140844N	69	914	736	845	841	890	805	40	0.06	0.06	0.09	0.09	0.01-0.04	936	8	117
XSI140944N	76	1014	840	945	941	990	905	44	0.06	0.06	0.11	0.09	0.01-0.05	1032	8	129
XSI141094N	91	1164	984	1095	1091	1140	1055	48	0.07	0.07	0.11	0.11	0.01-0.05	1184	8	148

Why Choose GQZ Bearing?

Slewing Ring & Cross Roller Expertise
High Precision Manufacturing
Stable Performance for CNC Systems
Customization & Global Delivery Support

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts 0

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts 1

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts 2

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts 3

XSI140414N Slew Ring Bearing 325x484x56mm Compact Cross Roller Bearing for CNC Parts 4

Q1: What type of bearing is XSI140414N?

A1: It is a compact slewing ring bearing with crossed cylindrical rollers.

Q2: Is it suitable for CNC machine parts?

A2: Yes, it is designed for high-precision CNC and automation systems.

Q3: Do you support customization?

A3: Yes, customization is available for preload, accuracy class, and materials.

Upgrade your system with XSI140414N Slew Ring Cross Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
