THK RU445X Precision Crossed Roller Bearing 350x540x45mm for Heavy Robotics

THK RU445X Precision Crossed Roller Bearing 350x540x45mm for Heavy Robotics

Nama merek:	GQZ
Nomor Model:	RU445X
Jumlah Pesanan Minimum:	5 buah
harga:	$350- $400
Waktu Pengiriman:	3 hari kerja setelah menerima pembayaran Anda
Ketentuan Pembayaran:	T/T atau Western Union atau PayPal

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO90001

Bahan:

Baja Gcr15

Nama Produk:

Bantalan rol bersilangan yang sangat tipis

Tipe Segel:

Tertutup

tanda pengenal (mm):

OD (mm):

Lebar (mm):

Peringkat presisi:

P0-P5

Struktur:

Berbentuk silinder

Kemasan rincian:

Dikemas dalam karton pertama, dan kemudian diperkuat dengan kasing kayu untuk pengepakan luar

Menyediakan kemampuan:

3.000 buah per bulan

Menyoroti:

THK RU445X crossed roller bearing

precision robot bearing 350x540x45mm

heavy robotics roller bearing with warranty

Deskripsi produk

RU445X High-Torque Precision Crossed Roller Slewing Bearing 350x540x45mm

Product Overview

The RU445X Crossed Roller Bearing is a high-precision, heavy-duty rotary solution featuring an integrated ring design. The "X" configuration signifies a specialized tapped-hole arrangement on the inner ring, allowing for direct mounting without additional pressure plates. It is specifically designed for large-scale industrial robot bases, backlash-free CNC rotary tables, and medical gantries.

Key Features

X-Type Mounting: Tapped holes on the inner ring simplify assembly and increase structural rigidity.
Extreme Load Capacity: Built to support static loads up to 473 kN in high-stress environments.
Enhanced Tilting Resistance: Crossed-roller geometry provides superior stability against moment loads.
Large Bore Diameter: 350mm inner diameter allows for easy passage of large spindles and wiring.
Sub-Micron Accuracy: High-precision P2/P4 standards ensure zero-play, high-torque rotation.

Technical Specifications

Parameter	RU445X Details
Model	RU445X (Tapped-Hole Type)
Inner Diameter (ID)	350 mm
Outer Diameter (OD)	540 mm
Width (H)	45 mm
Type	Cross Roller Slewing Bearing
Structure	Integrated Ring, Crossed Cylindrical Rollers
Material	Bearing Steel (GCr15)
Dynamic Load (C)	222 kN
Static Load (C0)	473 kN
Mass	35.4 kg
Accuracy Class	P5 / P4 / P2 optional
Application	Heavy Robotics, Rotary Tables, Medical Equipment

Applications

Heavy Industrial Robotics: Main rotation axis for large-payload industrial robot arms.
CNC Machining Centers: Large-scale 4th/5th axis rotary tables and vertical boring mills.
Medical Technology: Precision rotation for heavy-duty CT scanners and MRI equipment.
Aerospace & Radar: High-torque antenna pedestals and satellite tracking mounts.

Model	d	D	B	C	Co	kg
RU28	10	52	8	2.91	2.43	0.12
RU42	20	70	12	7.35	8.35	0.29
-	25	80	12	8.61	10.6	0.4
RU66	35	95	15	17.5	22.3	0.66
RU85	55	120	15	20.3	29.5	1
RU124	80	165	22	33.1	50.9	2.6
RU124G	80	165	22	33.1	50.9	2.6
RU124X	80	165	22	33.1	50.9	2.6
RU148	90	210	25	49.1	76.8	4.9
RU148G	90	210	25	49.1	76.8	4.9
RU148X	90	210	25	49.1	76.8	4.9
RU178	115	240	28	80.3	135	6.8
RU178G	115	240	28	80.3	135	6.8
RU178X	115	240	28	80.3	135	6.8
RU228	160	295	35	104	173	11.4
RU228G	160	295	35	104	173	11.4
RU228X	160	295	35	104	173	11.4
RU297	210	380	40	156	281	21.3
RU297G	210	380	40	156	281	21.3
RU297X	210	380	40	156	281	21.3
RU445	350	540	45	222	473	35.4
RU445G	350	540	45	222	473	35.4
RU445X	350	540	45	222	473	35.4

Why Choose GQZ Bearing?

Industrial-Grade Quality: Designed for demanding heavy-load environments.
Reliable Delivery: Efficient production and global logistics support.
Technical Expertise: Professional guidance for selection and system integration.
Customization Available: OEM/ODM solutions tailored to your project needs.

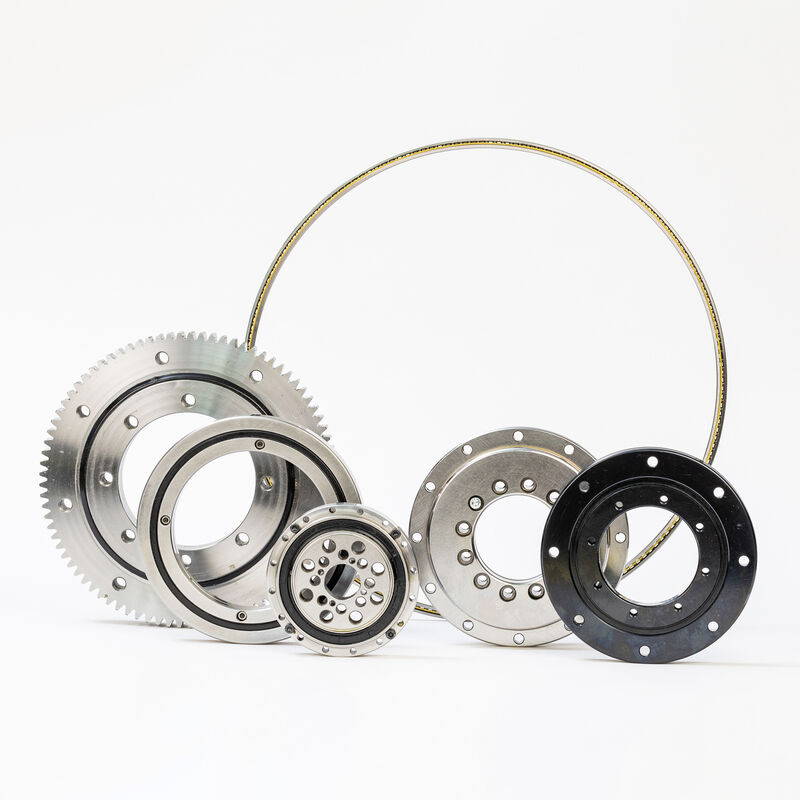

THK RU445X Precision Crossed Roller Bearing 350x540x45mm for Heavy Robotics 1

THK RU445X Precision Crossed Roller Bearing 350x540x45mm for Heavy Robotics 2

THK RU445X Precision Crossed Roller Bearing 350x540x45mm for Heavy Robotics 3

FAQ

1. What is the benefit of the "Slewing" design in the RU445X?

The slewing design allows a single bearing to replace a multi-bearing setup. It handles radial, axial, and moment loads simultaneously, saving space and reducing weight in large machinery.

2. Is the RU445X suitable for both inner and outer ring rotation?

Yes. Since both rings are integrated units, the RU445X maintains high rotational accuracy and rigidity regardless of which ring is driven.

3. Can GQZ provide custom lubrication for extreme environments?

Absolutely. We offer specialized grease for high-speed, high-temperature, or vacuum-sealed environments to match your specific application requirements.

Experience the stability and precision of the GQZ RU445X. Contact our engineering team today for technical drawings, 3D models, or a competitive quote!
