The Deskripsi singkat bantalan bola empat titik kontak:
Bantalan bola empat titik kontakadalah jenis bantalan yang dapat dipisahkan, atau bantalan bola kontak sudut yang dapat menahan beban aksial bidirectional.Ketika tidak ada beban atau beban radial murni, bola baja dan cincin di empat titik kontak.
Gambar Dimensi
|

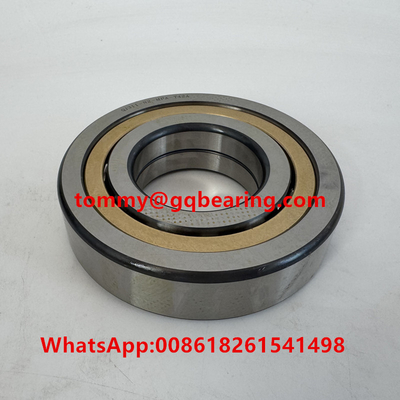

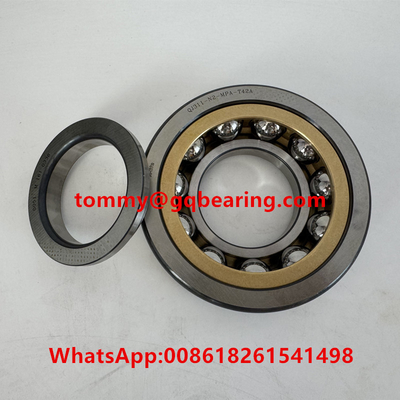

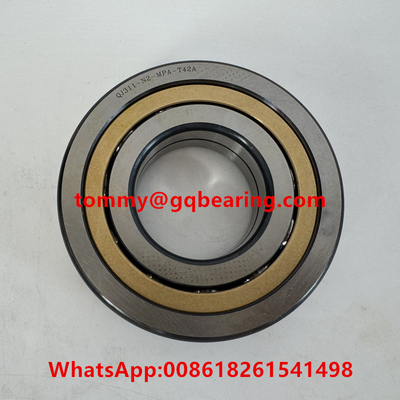

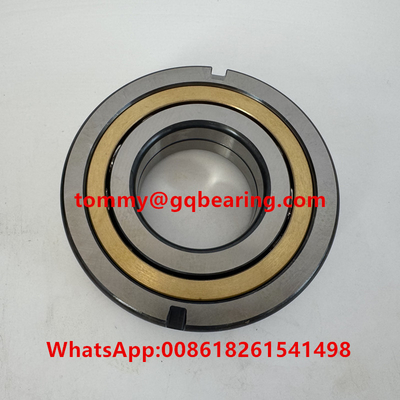

QJ311-N2-MPA-T42A |
d
|
55 mm |
D
|
120 mm |
C
|
29 mm |
| Nomor beban dinamis dasar, radial |
133000 N |
Nomor dasar beban statis, radial
|
108000 N |
r
|
0.0394 dalam1.000 mm |
r1
|
0.0236 dalam0.600 mm |
ds
|
10-32 UNF |
G
|
0.1772 dalam4.500 mm |
d4
|
1.1654 dalam29.600 mm |
S1
|
0.7205 dalam18.300 mm |
S
|
0.5000 dalam12.700 mm |
a
|
0.1220 dalam3.100 mm |
b
|
0.0591 dalam1.500 mm |
D1
|
1.7559 dalam44.600 mm |
F
|
0.1575 dalam4.000 mm |
Berbagai jenis bantalan:
UC200 Series: UC201, UC202, UC203, UC204, UC205, UC206, UC207, UC208, UC209, UC10, UC211, UC212, UC213, UC214, UC215, UC216, UC217, UC208, UC209, UC210, UC211, UC212, UC213, UC214, UC215, UC216, UC217,UC218
Seri UC300: UC305, UC306, UC307, UC308, UC309, UC310, UC311, UC312, UC313, UC314, UC315, UC316, UC317, UC318, UC319, UC320, UC321, UC322, UC324, UC326, UC328
UCF 200 Seri: UCF204, UCF205, UCF206. UCF207, UCF208, UCF209, UCF210,
UCF211, UCF212, UCF213, UCF214, UCF215, UCF216, UCF217, UCF218
UCF 300 Seri:UCF305, UCF306, UCF307UCF308, UCF309, UCF310, UCF311,
UCF312, UCF313, UCF314, UCF315, UCF316, UCF317, UCF318, UCF319,
UCF320, UCF321, UCF322, UCF324, UCF326, UCF328
